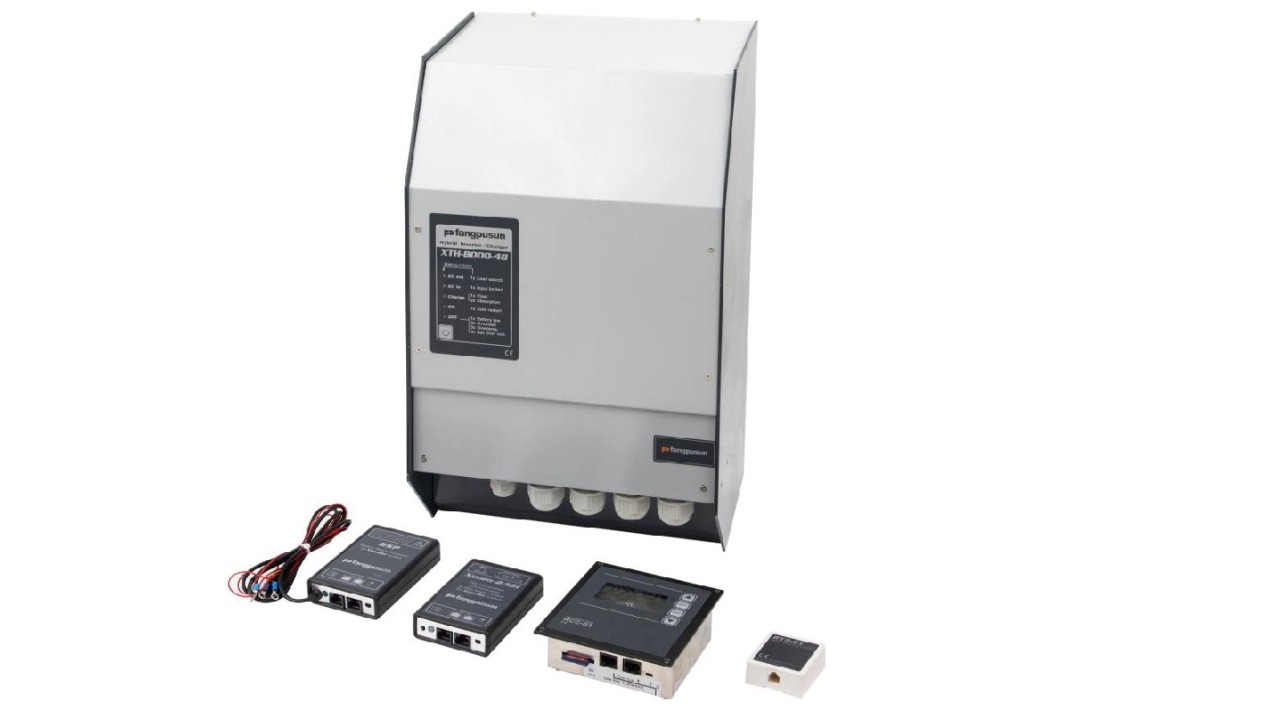

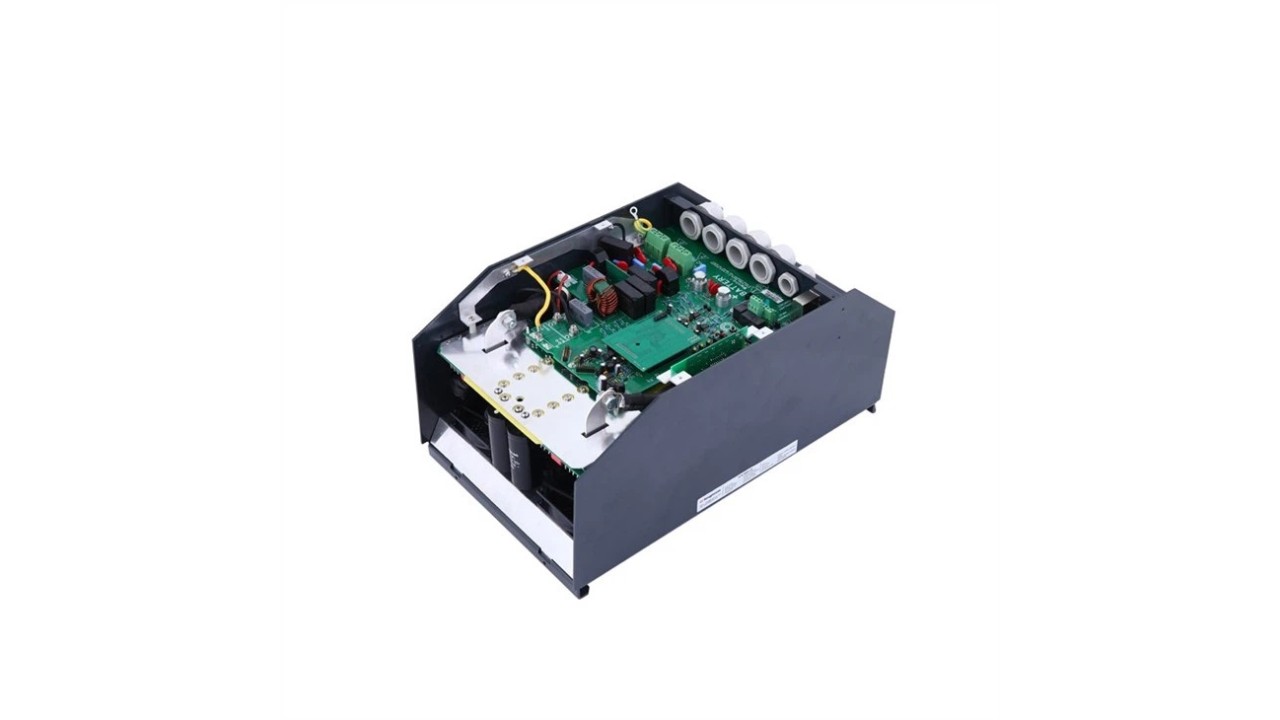

Fangpusun Xtalent series XTH8000-48 Αντιστροφέας καθαρού ημιτόνου με φορτιστή 48V 8000VA

Product features
● True sine wave voltage	● Excellent overload capabilities
● Optimal battery protection	● Adjustable integrated battery charger
● Multistage programmable battery charger with PFC	● Automatic load detection
● Parallel connectable	● Best reliability
● Multifunction contact	● Adjustable power sharing
● Standby load detection adjustable over a wide range, starting from a low value

The main function of the design XTH series Off grid solar power inverter as follows:

The Xtalent series provides unmatched freedom of use due to its many functions. In a basic application, it offers a total package: the functions of inverter, battery charger, transfer system and assistance to the source These functions can be combined and controlled in a totally automatic way for exceptional ease and optimal management of available energy.

The Xtalent is equipped with a command entry and 2 configurable auiliary contacts. This allows automatic control of a genset or loadshedding when the battery voltage is too low. The flexibility obtained makes it possible to implement special functionalities, often necessary for good energy management In standalone systems.

The Xtalent series offers an optimal use of all sources that can be found in hybrid systems, whatever their connecting mode (AC or DC bus), up to the nominal power of the Xtalent system (single, parallel and/or three phase).

Function Smart-Boost and active filtering

With this function it is possible to interact directly with the A source (Genset or grid) and to implement some basic functions such as:

● Efficient and immediate limitation of the current of the source, Including non linear or inductive/ capacitive loads, protecting efficiently the breakers during connection to shore power or to a camping power meter with limited current (function of power shaving and power assistance) (more information on our website and in the Application note AN001/www.fangpusun.com).

◆ Power shaving of load steps on the generator allowing an optimal sizing of the generator and assuring the best possible efficiency of the fossil fuels (function of filtering and of power assistance).

The function of assistance to the source enables also to implement advanced functions such as the priority use of renewable energy, even when the grid is available (more information on our website and in the Application note AN002Avww.fangpusun.com).

Features and performances

● Outstanding efficiency and overload.

● Perfect management and limitation of AC sources.

● Power shaving of the consumption peaks.

● Automatic allocation of available power.

● Active filtering of load steps on the genset.

● Automatic protection of the sources against overload.

● Battery priority (or to renewable sources).

● Parallel and three-phase setting, up to 9 units (72kVA).

● Powerful multi-stage PFC charger.

● Ultra-short transfer time (from 0 to 15ms max.).

● Automatic and efficient stand-by.

● 2 programmable auxiliary contacts (optional on the XTS).

● Compatible with AC coupling.

● XTS electronically protected against reverse polarity.

● Display, programming and data logging integrated

in the remote control (RCC).

● Interactive with the Battery Status Processor (BSP).

● RS-232 communication for remote supervision.

Electronic protection functions

Deep discharge protection

Battery overvoltage shutdown

Short circuit protection

Overtemperature and overload protection

Reverse polarity protection by internal fuse (except Fangpusun Xtalent XTH 3000) Acoustic alarm at deep discharge or overheating

Displays

5 LEDs show operating states

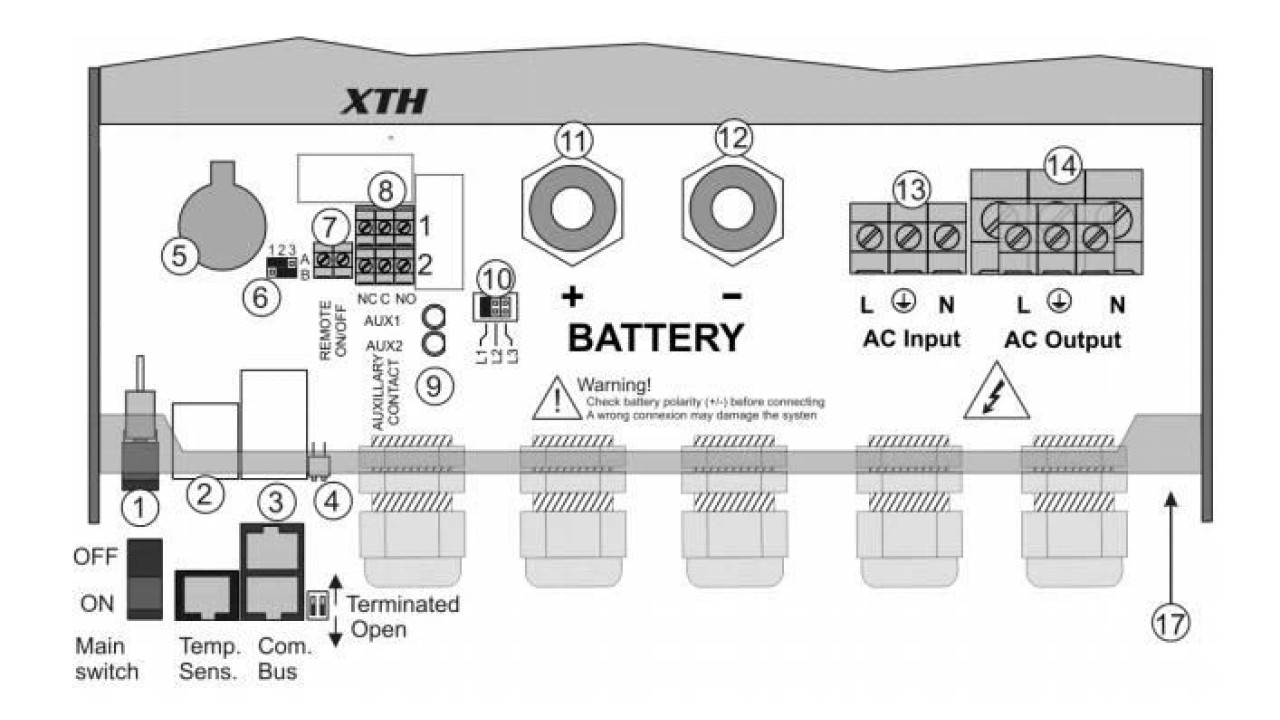

The connection:

The data of the XTH series Xtalent Inverter:

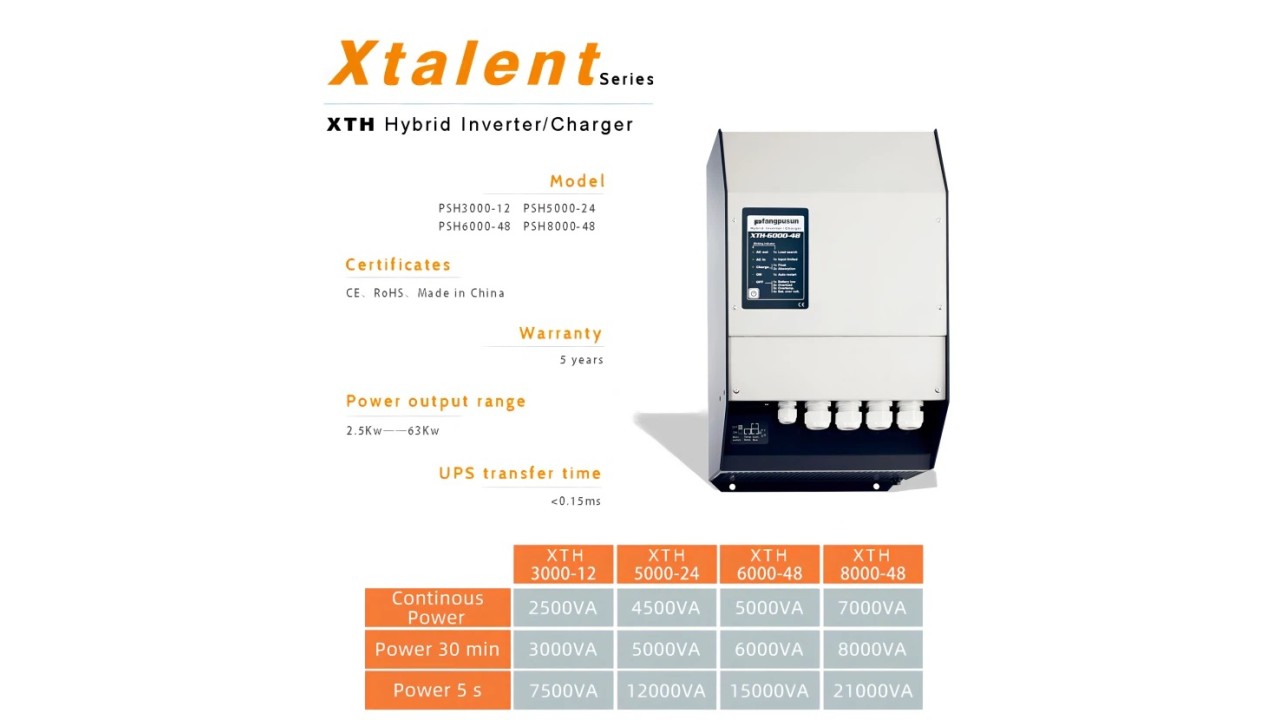

Model	XTH 3000-12	XTH 5000-24	XTH 6000-48	XTH 8000-48
Characterisation of the operating performance
Nominal battery voltage	12V	24V	48V	48V
Input voltage range	9.5-17VDC	19-34VDC	38-68VDC	38-68VDC
Continuous power	2500VA	4500VA	5000VA	7000VA
Power 30 min.	3000VA	5000VA	6000VA	8000VA
Power 5 sec.	7.5KVA	12KVA	15KVA	21KVA
Max.efficiency	93%	94%	96%	96%
Own consumption stand by	1.4W	1.8W	2.2W	2.4W
Own consumption ON	14W	18W	22W	30W
Acoustic level without ventilation	40 dB
Acoustic level with ventilation	45 dB
Maximum load	Up to short-circuit
Maximum asymmetric load	Up to Pcont.
Load detection (stand-by)	2 to 25 W
Cos p	0.1-1
Output voltage	Pure sine wave 230Vac (±2%)/120Vac(1)
Output frequency	45Hz-60Hz(1)±0.05%(crystal controlled)
Harmonic distortion	<2%
Overload and short-circuit protection	Automatic disconnection with 3 time restart attempt
Overheat protection	Warning before shut-off- with automatic restart
Battery charger
Charge Characteristic	6 steps: Bulk-Absorption-Floating-Equalization-reduced fl oating-periodic absorptionNumber of steps, thresholds, end current and times completely adjustable with the RCC-02/-03
Temperature compensation	With BTS-01 or BSP 500/1200
Power Factor Correction(PFC) according	EN 61000-3-2
Maximum charging current	160A	100A140A			120A
Warranty	5years

Transfer Time   < 15ms
